§ Ayra Trust Network Playground

This document provides instructions for setting up and testing your own Ayra Trust Network playground environment.

NOTE

This is a DRAFT

§ Prerequisites

§ Running with Docker

The easiest way to run the playground is using Docker Compose:

  1. Clone the repository:

    git clone https://github.com/ayraforum/ayra-trust-registry-resources.git
cd ayra-trust-registry-resources/playground

  2. Start all services using Docker Compose:

    docker-compose up -d

  3. The following services will be available:

  4. To view logs from any service:

    docker-compose logs ayra
docker-compose logs ecosystem
docker-compose logs verifier

  5. To stop all services:

    docker-compose down

§ Manual Setup (Alternative to Docker)

If you prefer to run the services without Docker:

§ Prerequisites for Manual Setup

§ Step 1: Set up a Sample Ayra Trust Registry

  1. Navigate to the trust-registry directory:

    cd trust-registry

  2. Initialize the Go modules:

    go mod tidy

  3. Run the Go program:

    go run main.go --port=8082 --registry-name=TR-1

  4. You will see a DID generated in the console output. Take note of this as it will be referred to as the Ayra DID.

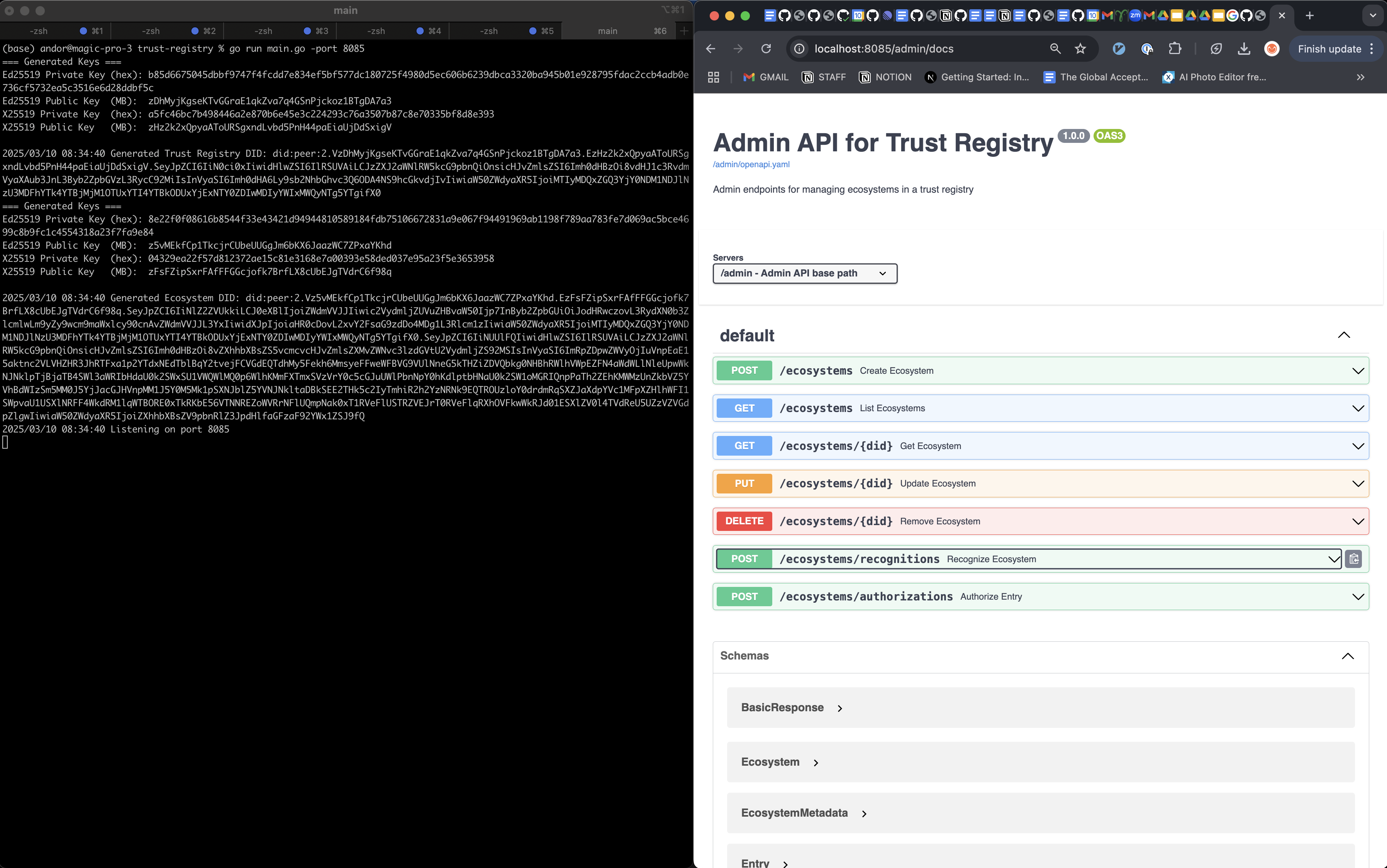

§ Step 2: Set up a Sample Ecosystem

  1. Open a new terminal window

  2. Navigate to the trust-registry directory:

    cd trust-registry

  3. Run the Go program on a different port:

    go run main.go --port=8083 --registry-name=TR-2

  4. This creates a second ecosystem running independently of the Ayra Trust Registry.

  5. Note the DID generated for this ecosystem, which will be referred to as the Sample Ecosystem DID.

imgs/admin_view.png

§ Step 3: Set up the Verifier

  1. Navigate to the verifier directory:
    cd ../verifier
  2. Install the required Python dependencies:
    pip install -r requirements.txt
  3. Launch the Streamlit verification interface:
    streamlit run ui.py
    This will open a web interface in your default browser at http://localhost:8501

§ Working with the Playground

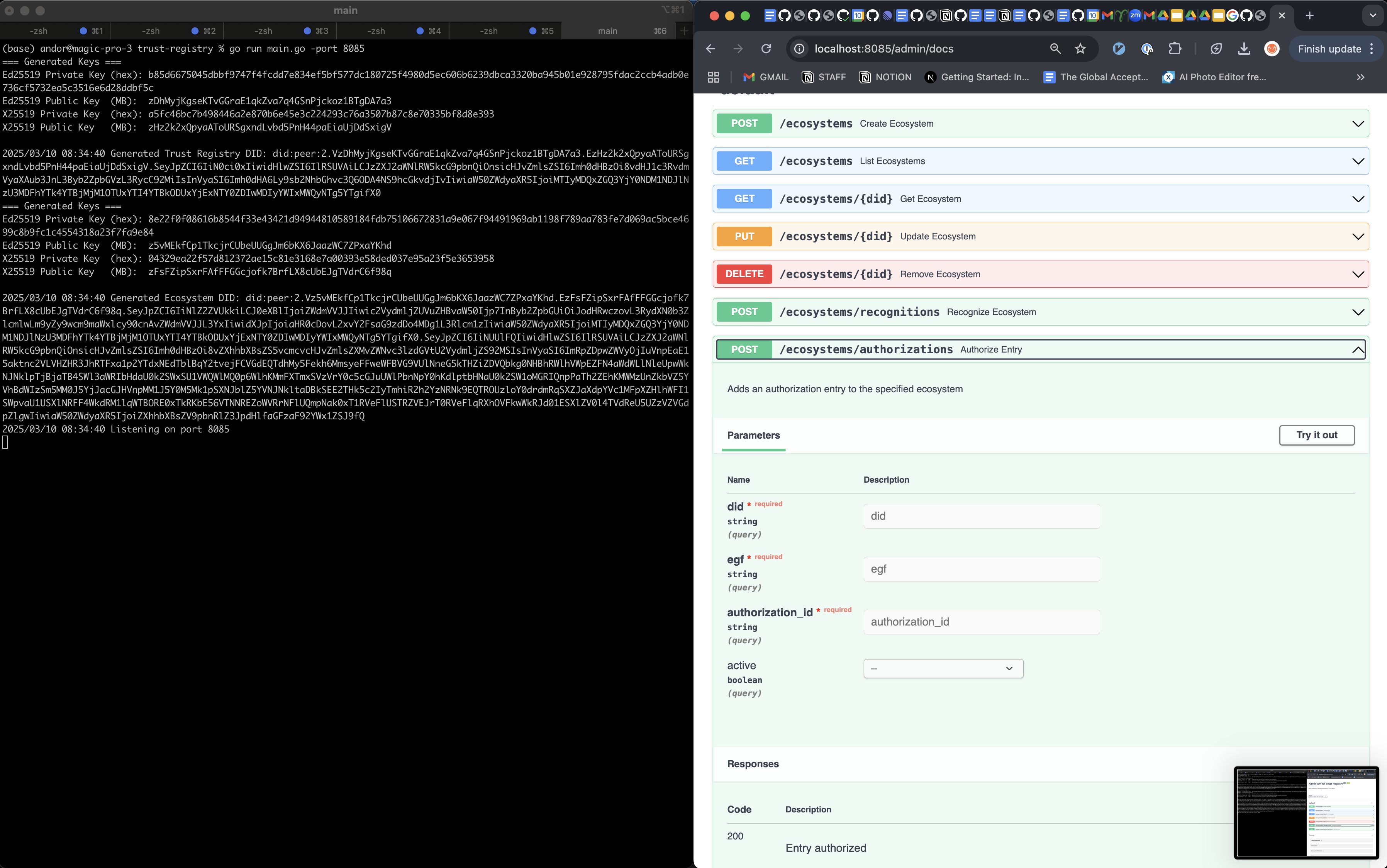

§ Step 1: Authorize an Entry in Your Ecosystem

  1. Open a web browser and navigate to http://localhost:8083/admin/docs
  2. Locate and select the admin/authorize API endpoint
  3. Enter the following required parameters:
    • Authorization Type: [string that defines the type of authorization]
    • EGF Identifier: [identifier for your ecosystem governance framework]
    • Entry ID: [unique identifier for the entity being authorized]
  4. Submit the request
  5. The entity is now authorized within your sample ecosystem

Note: In production environments, authorization will follow your specific trust framework and governance processes. This is a simplified sample implementation.

imgs/authorization_admin.png

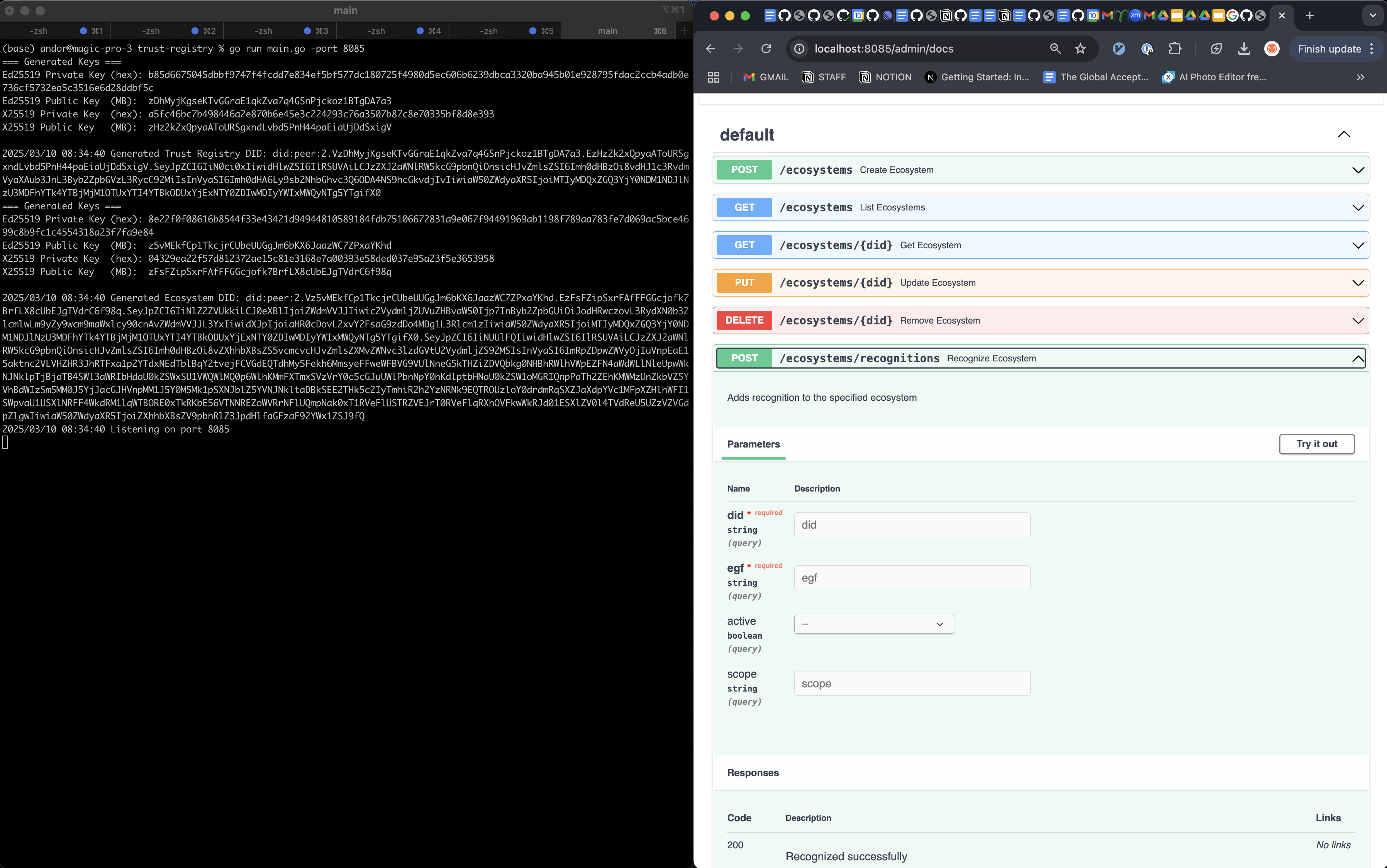

§ Step 2: Establish Recognition Between Ecosystems

  1. Navigate to http://localhost:8082/admin/docs in your browser
  2. Locate and select the /admin/recognition API endpoint
  3. Enter the following parameters:
    • Target Ecosystem: [Sample Ecosystem DID from Step 2]
    • EGF DID: [Ayra Ecosystem DID from Step 1]
  4. Submit the request

imgs/recognize_admin.png

Note: In production, this recognition process will be conducted through the formal Ayra Governance Process.

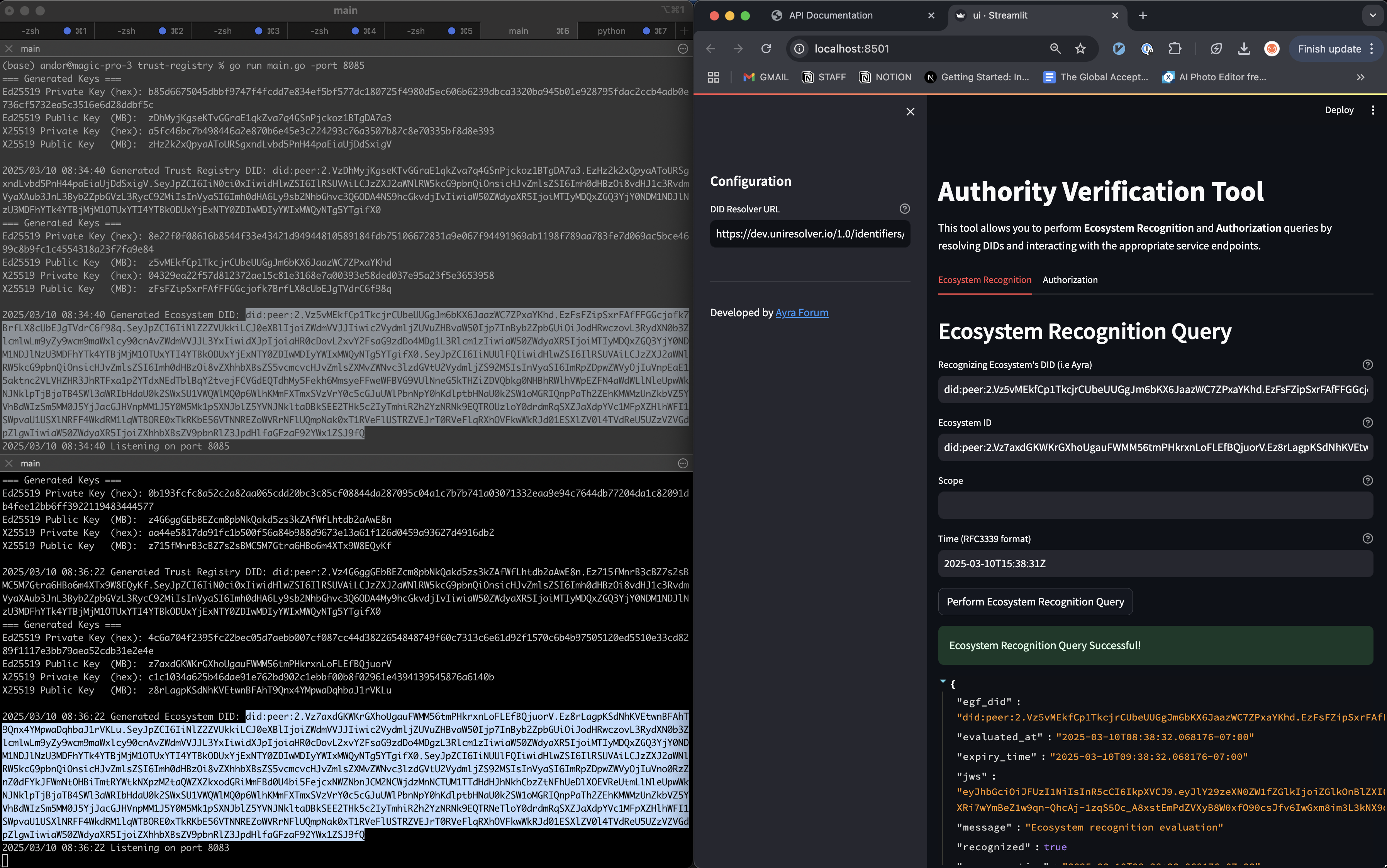

§ Step 3: Test Verification

§ Testing Ecosystem Recognition

  1. In the Streamlit interface (http://localhost:8501), navigate to the “Ecosystem Recognition” tab
  2. Complete the form with the following information:
    • Recognizing Ecosystem’s DID: [Enter the Ayra DID from Trust Registry 1]
    • Ecosystem ID: [Enter the Sample Ecosystem DID from Ecosystem]
  3. Click “Perform Ecosystem Recognition Query”
  4. The interface will display the recognition status and details of the trust relationship between the two ecosystems

imgs/recognition_query.png

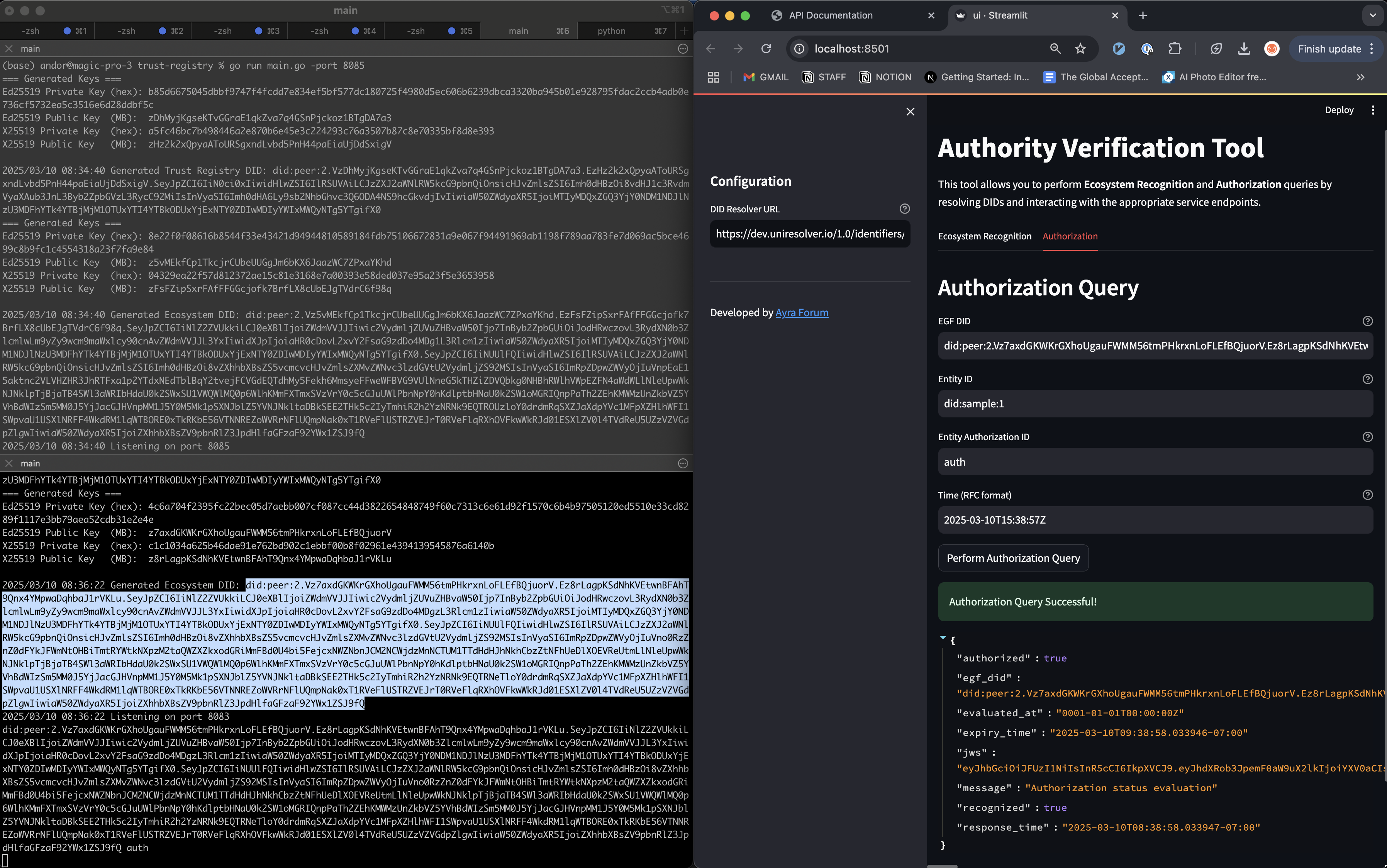

§ Testing Authorization

  1. Navigate to the “Authorization” tab in the Streamlit interface
  2. Complete the form with the following information:
    • EGF DID: [Enter the Sample Ecosystem DID from Ecosystem]
    • Entity ID: [Enter the authorized entity ID from Step 3]
    • Entity Authorization ID: [Enter the authorization type string from Step 3]
  3. Click “Perform Authorization Query”
  4. The interface will display the authorization status, confirming whether the specified entity is authorized within the ecosystem

imgs/authorization_query.png

§ Environment Configuration

Both trust registries can be configured using the following environment variables:

The verifier can be configured with:

§ Important Note on BASE_URL

The BASE_URL value is used directly for creating DIDs and service endpoints. In Docker Compose, the BASE_URL should include the container name and port (e.g., http://ayra:8082). This allows containers to properly communicate with each other within the Docker network.

When running manually, you’ll typically use http://localhost:PORT as the BASE_URL.

§ Exploring DIDs

To better understand the structure of the DIDs created:

  1. Visit https://dev.uniresolver.io
  2. Enter any of the DIDs generated during this setup
  3. Review the DID document structure and properties

§ Security Notice

The JWT signatures in response messages should be verified to ensure message integrity. The current implementation in this playground environment does not include comprehensive signature verification for demonstration purposes.

§ Troubleshooting

§ Next Steps

After successful testing in the playground environment, review the Ayra Trust Network documentation for production implementation guidelines and best practices.

✕
